| 項目 | 規格 |
|---|---|

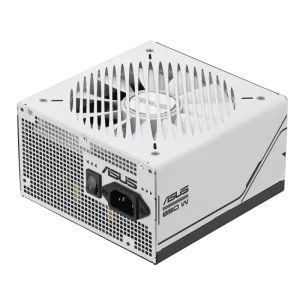

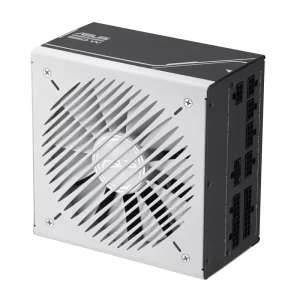

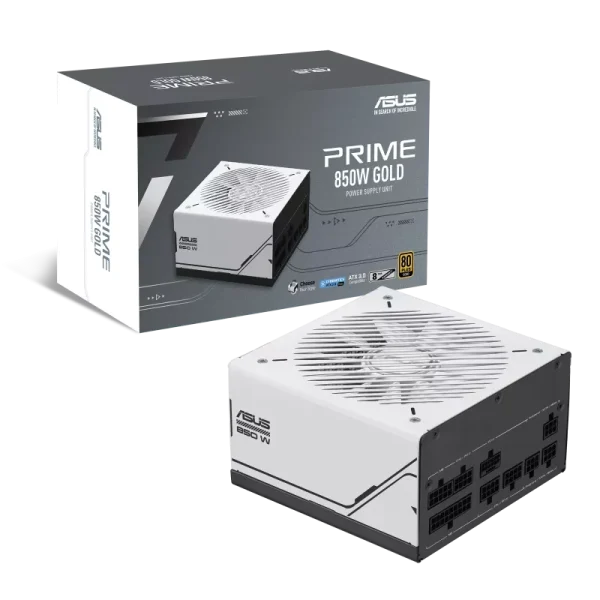

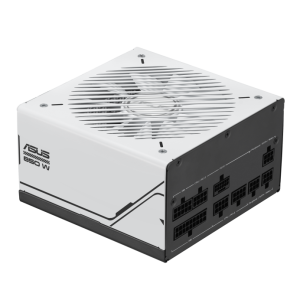

| 型號 | AP-850G |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |

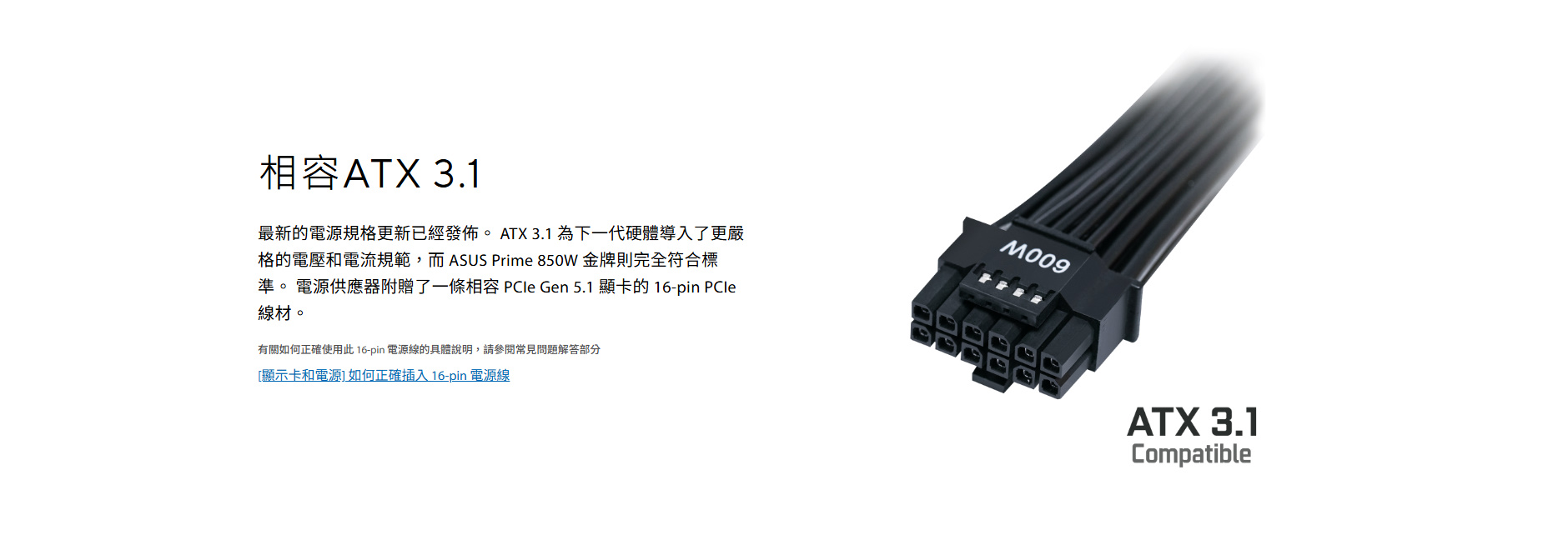

| ATX Standard | ATX 3.1 |
| 產品尺寸 | 150 x 150 x 86 mm |

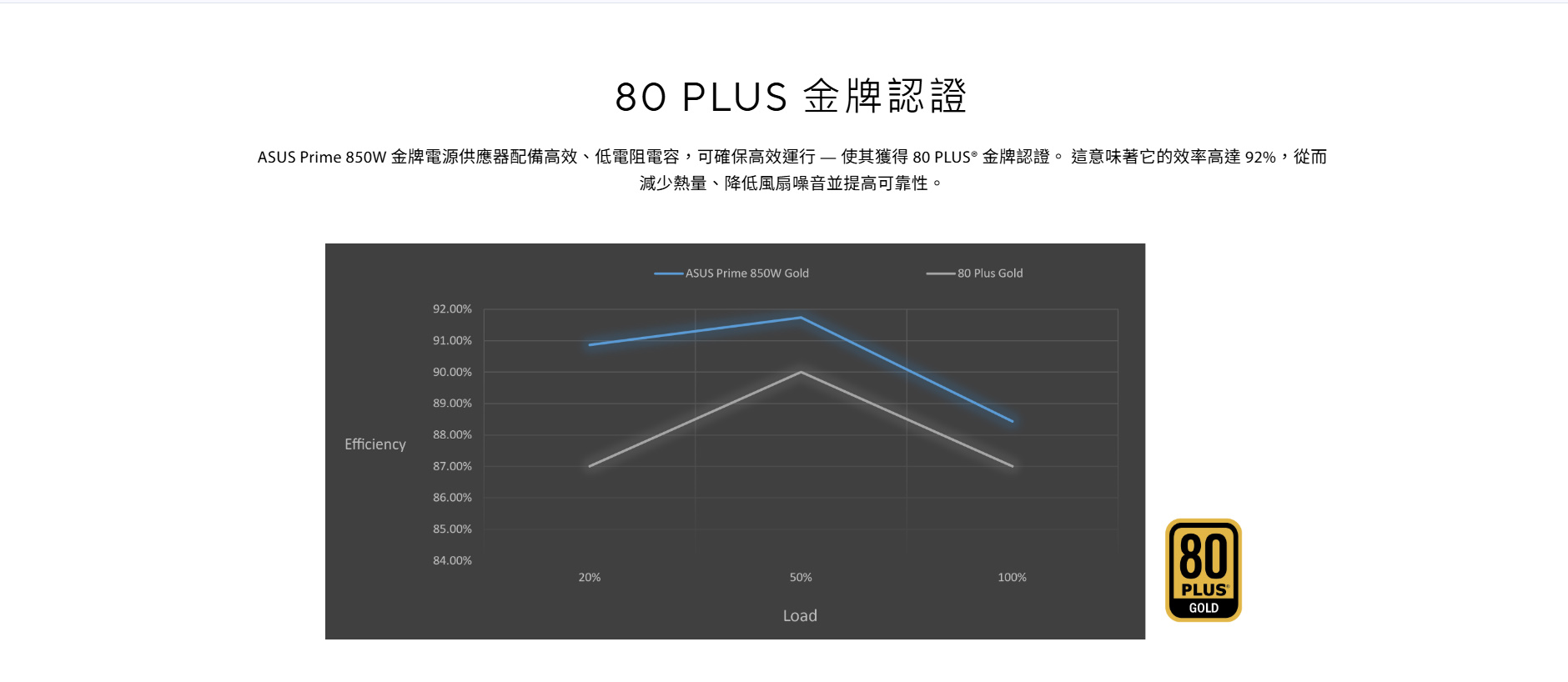

| 轉換功耗 | 80Plus 金 |
| 平均故障間隔(MTBF) | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| 輸入電壓(AC) | 100-240Vac |
| 輸出電壓(DC) | +3.3V +5V +12V -12V +5Vsb |
| 最大負載 | 20A 20A 70.5A 0.3A 2.5A |
| Combined Load | 110W 110W 846W 3.6W 12.5W |
| 總功耗 | 850W |
| 連接埠 | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & connector side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 3 |

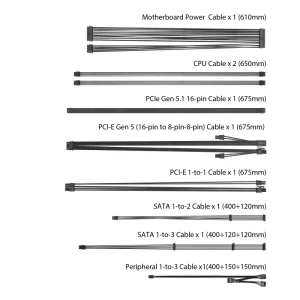

| 包裝內容物 | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5.1 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 1 (400+150+150mm) User Manual x 1 |
| 重量 | 1.502 kg (single PSU) |
| 0dB 技術 | 無 |
| 0dB 風扇按鈕 | 無，此產品不支援 0dB 技術。 |
